Trion

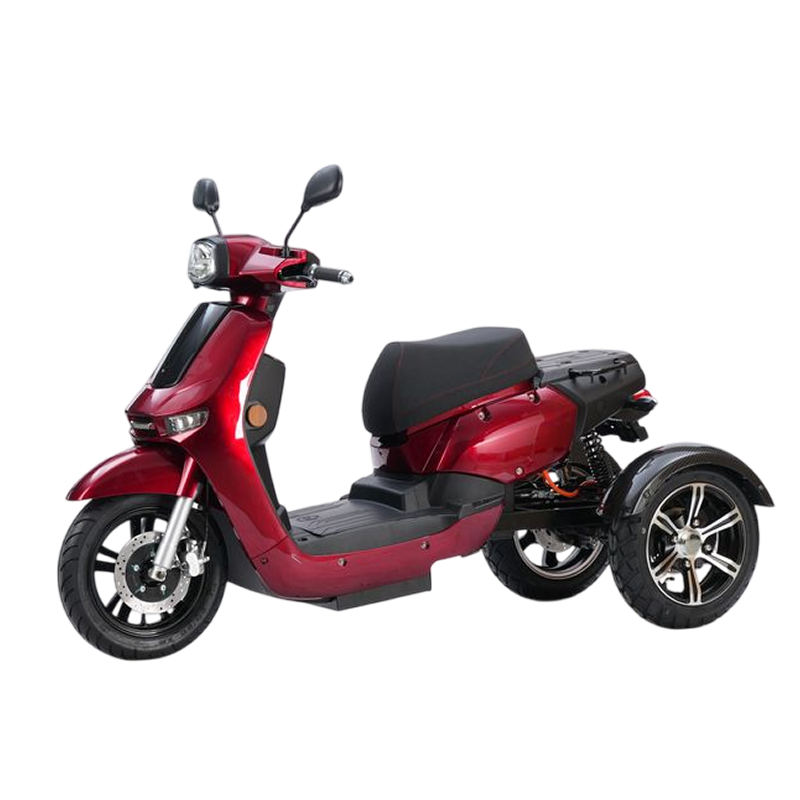

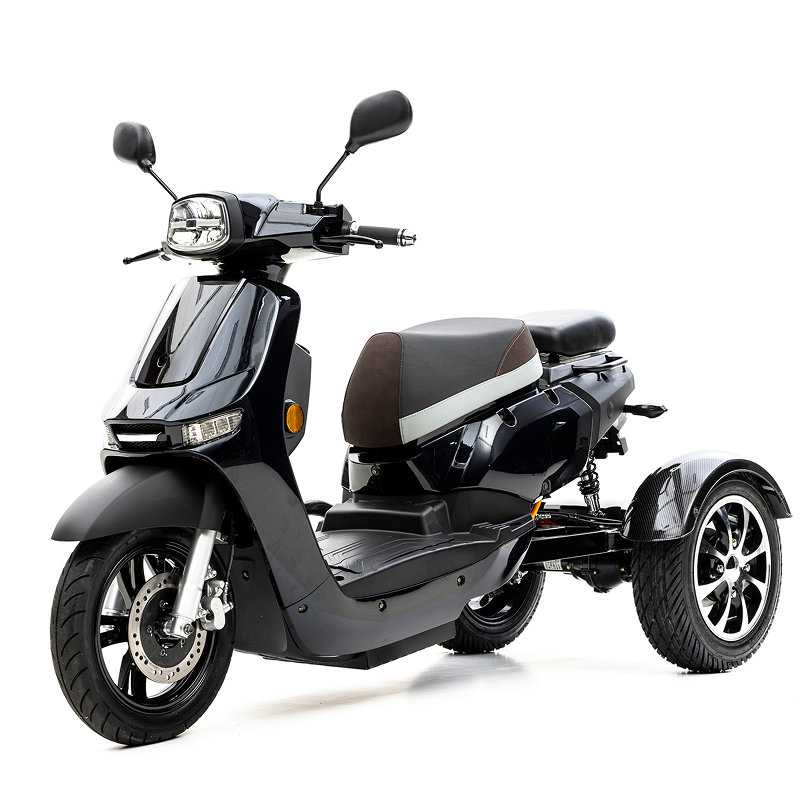

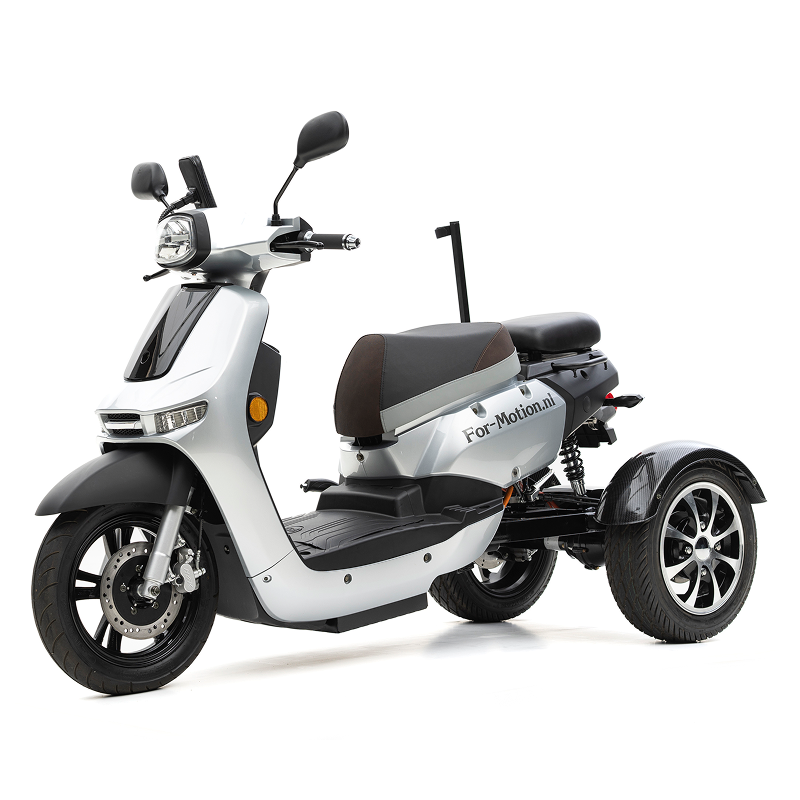

For Motion Trion - Electric three-wheel vehicle with sporty performance

The For Motion Trion is a rugged, powerful and sporty designed three-wheel mobility scooter, also known as a Trike. The vehicle is legally classified as a disabled vehicle, allowing it to be driven without a helmet or driver's license. With its powerful motor, hydraulic brakes and wide applicability, this vehicle is suitable for both recreational and functional use.

Essential features:

• Drive: 1800W maintenance-free electric motor with differential

• Accuation: 72V 34Ah lithium battery (expandable up to 107Ah)

• Charge time: approx. 3.5 - 11 hours depending on battery pack and charger

• Driving range: 60-180 km (depending on battery pack and usage conditions)

• Maximum speed: 25 km/h or 45 km/h (model dependent)

• Seating capacity: 1 person, expandable with passenger seat or backrest

• Steering: twist throttle, optional with thumb throttle or foot throttle

Standard equipment:

• Hydraulic disc braking system on front and rear wheels

• LED lighting all around including daytime running lights and spotlight

• Storage compartment under seat with space for battery(s) and charger

• USB connection (dual), cup holder, bag hook

• Broad rear axle with 12-inch aluminum sport rims

• Digital dashboard with battery level, speed and mileage

• Parking brake and lockable handlebars

Custom features (optional):

• Expansion with 72V 27Ah or 72V 73Ah battery

• 20A fast charger (only usable with dual battery packs)

• Extra seat or backrest for rider or passenger

• Windshield, top case, alarm, phone holder

• Brake control via foot brake or combined lever (i.instead of dual brake levers)

• Brake lever configurations: right standard / left or foot throttle optional

Seating comfort and storage capacity:

The Trion is equipped with an ergonomically shaped, spacious saddle with a large storage space underneath. This space accommodates the charger, extra battery and other personal belongings. The additional rear rack features reinforced construction, suitable for mounting a suitcase or passenger seat.

Stability and handling:

Thanks to the wide rear axle and robust suspension, the Trion offers excellent stability and grip under various road conditions. The suspension features dual shock absorbers with adjustable spring pressure for both comfort and sporty handling. The wheelbase and track width provide controlled cornering performance and minimal overhel.

Motor and energy management:

The 1800W electric motor is coupled to a differential, which distributes drive power evenly to the two rear wheels. This system reduces tire wear, increases driving comfort and improves energy consumption. Thanks to the intelligent controller, the speed is infinitely and precisely controllable from walking speed to top speed.

Battery technology and range:

The standard 72V 34Ah lithium battery provides a range of about 60 km under normal driving conditions. Additional batteries are optionally available up to a combined battery pack of 107Ah, good for a range of up to 180 km. The system supports internal and external charging, and is prepared for the integration of fast charging technology.

Dimensions and turning radius:

• Length: approx. 185 cm

• Width: approx. 76 cm (rear)

• Height: approx. 110 cm

• Turn radius: ±3.5 meters

Application and usability:

The Trion is widely usable for daily use, urban transportation, and light transportation purposes. Thanks to its three-wheel design, the vehicle is ideally suited for users who value stability and ride comfort. With its low step-in, parking brake and optional backrest, the Trion is also suitable for users with limited mobility.

European approval:

The vehicle is approved as a disabled vehicle according to EU standards and may be used on sidewalks, bicycle paths and lanes within those regulations. There is no helmet requirement or driving license requirement, provided the model meets the legal speed limit for mobility scooters.
